pico Talon
22.99 $

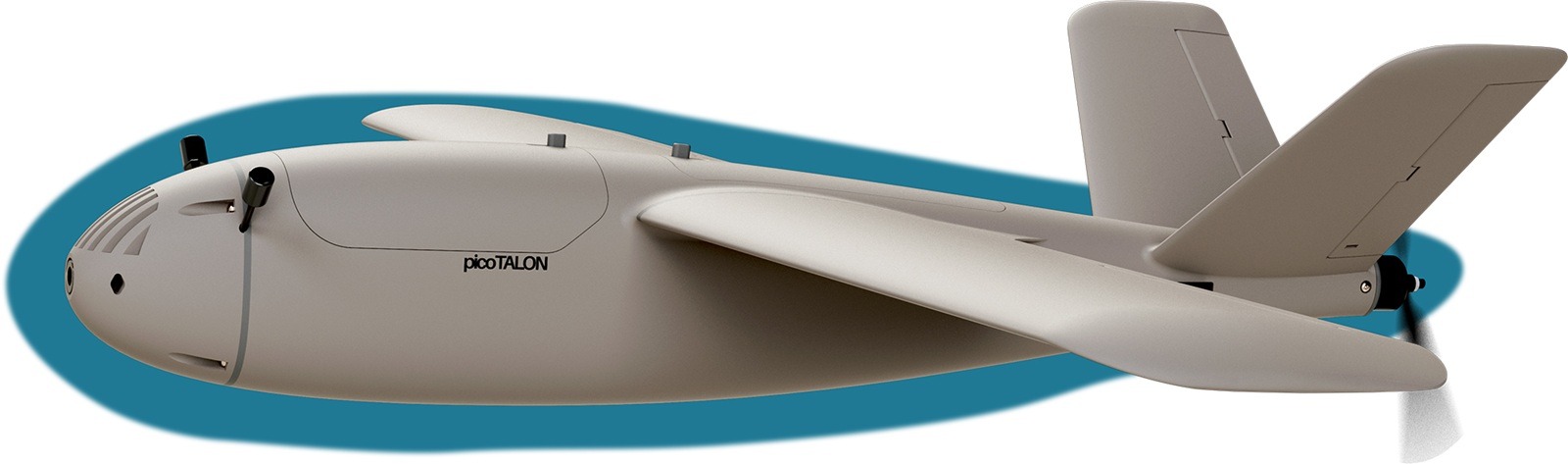

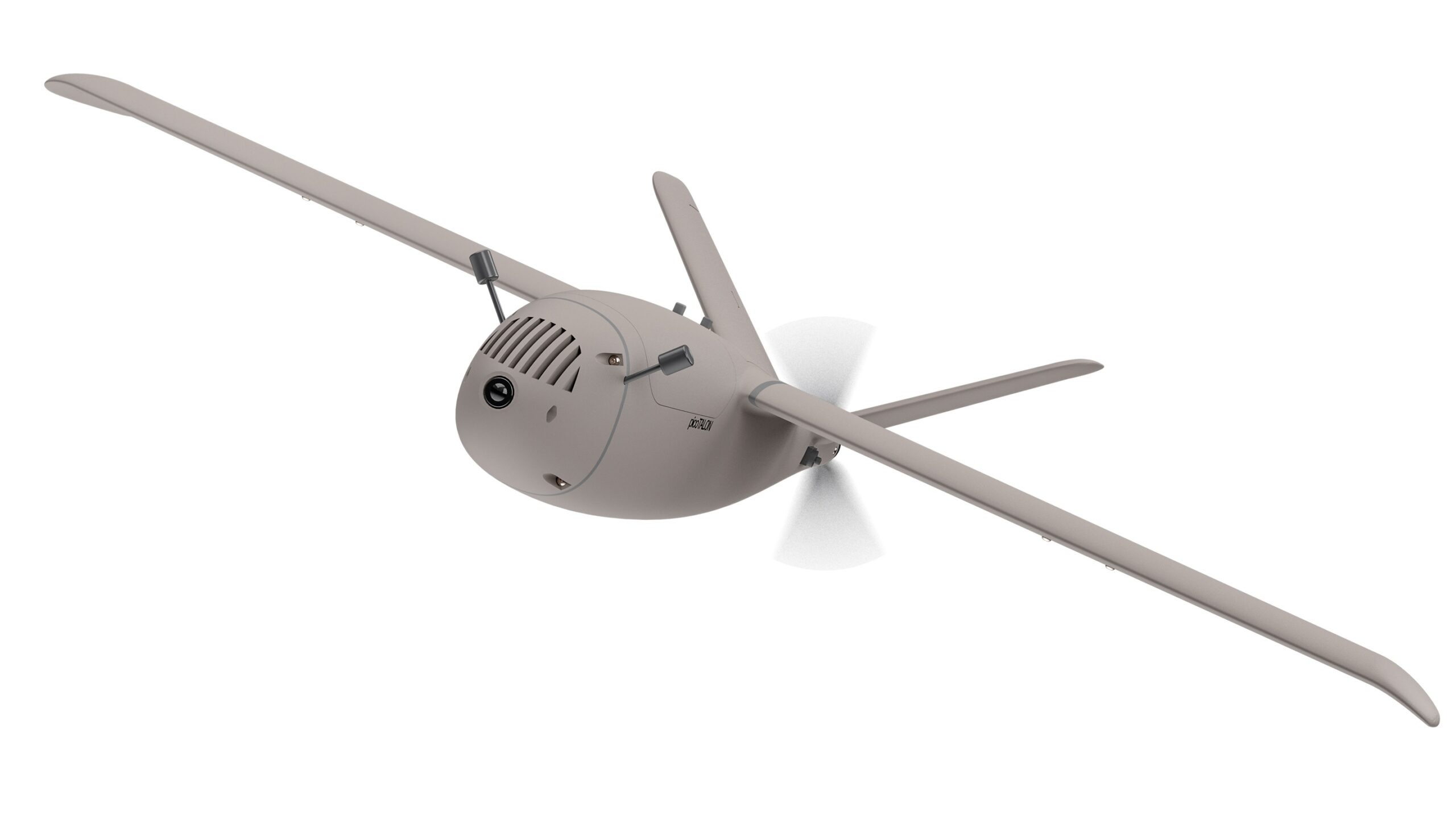

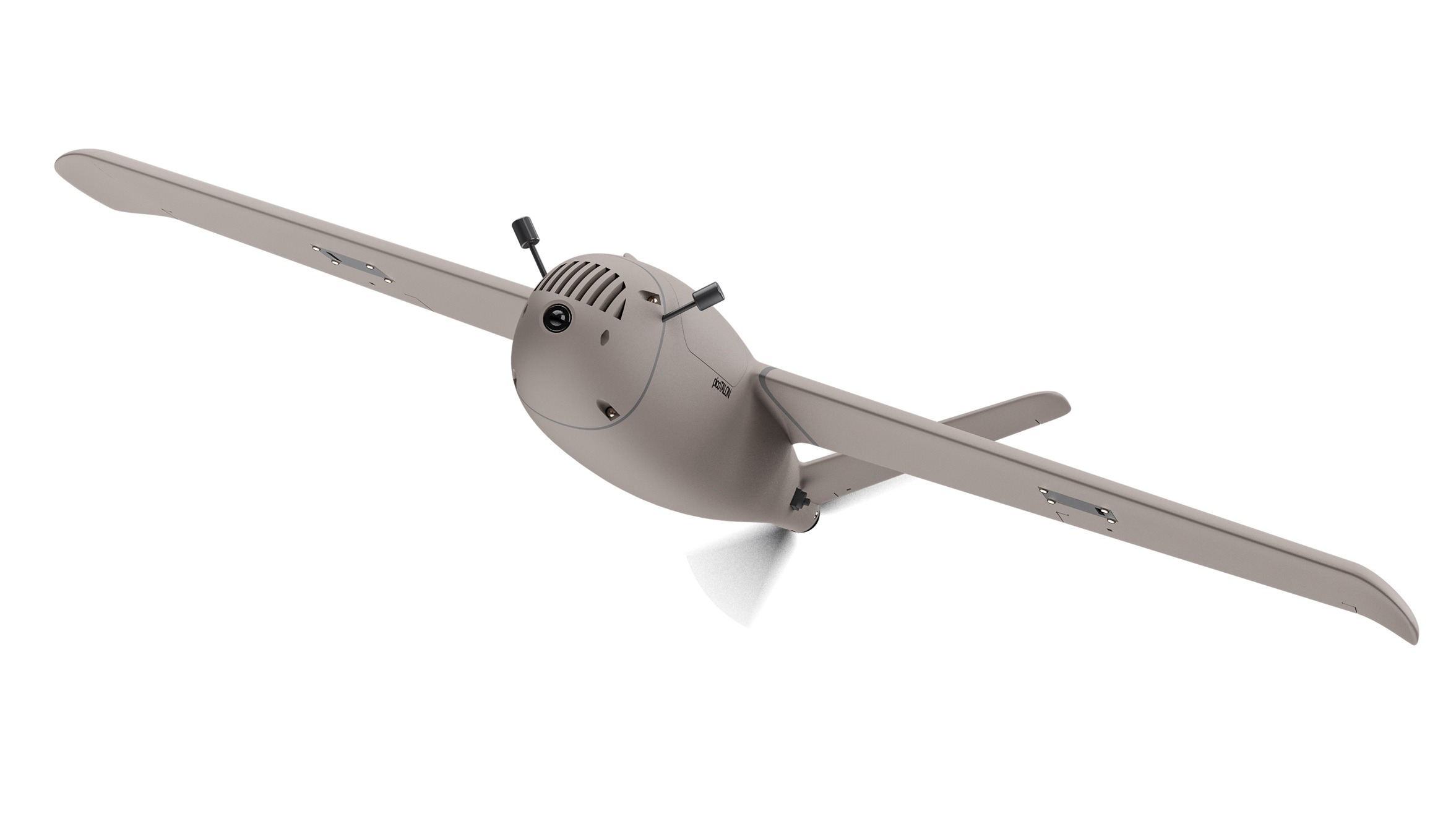

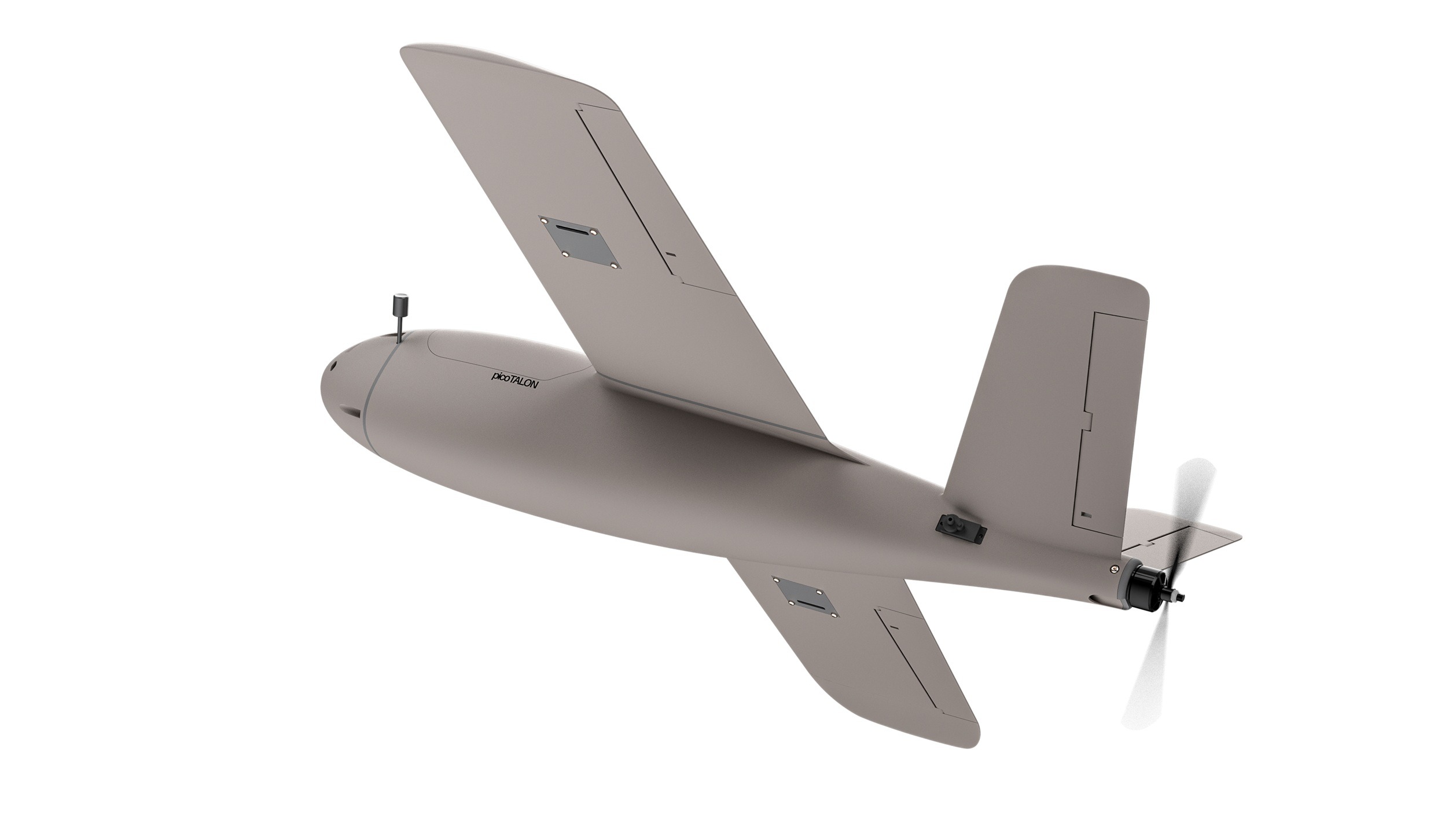

pico Talon – compact FPV aircraft
| Wingspan | 900mm |
|---|---|
| Length | 570mm |
| AUW | 800-1500g |
| Optimal Speed | 55-75 km/h |
| Bed Size | min. 200x200mm |
| Material | LW-PLA + PETG |
CHECK ALSO
OVERVIEW
General Data

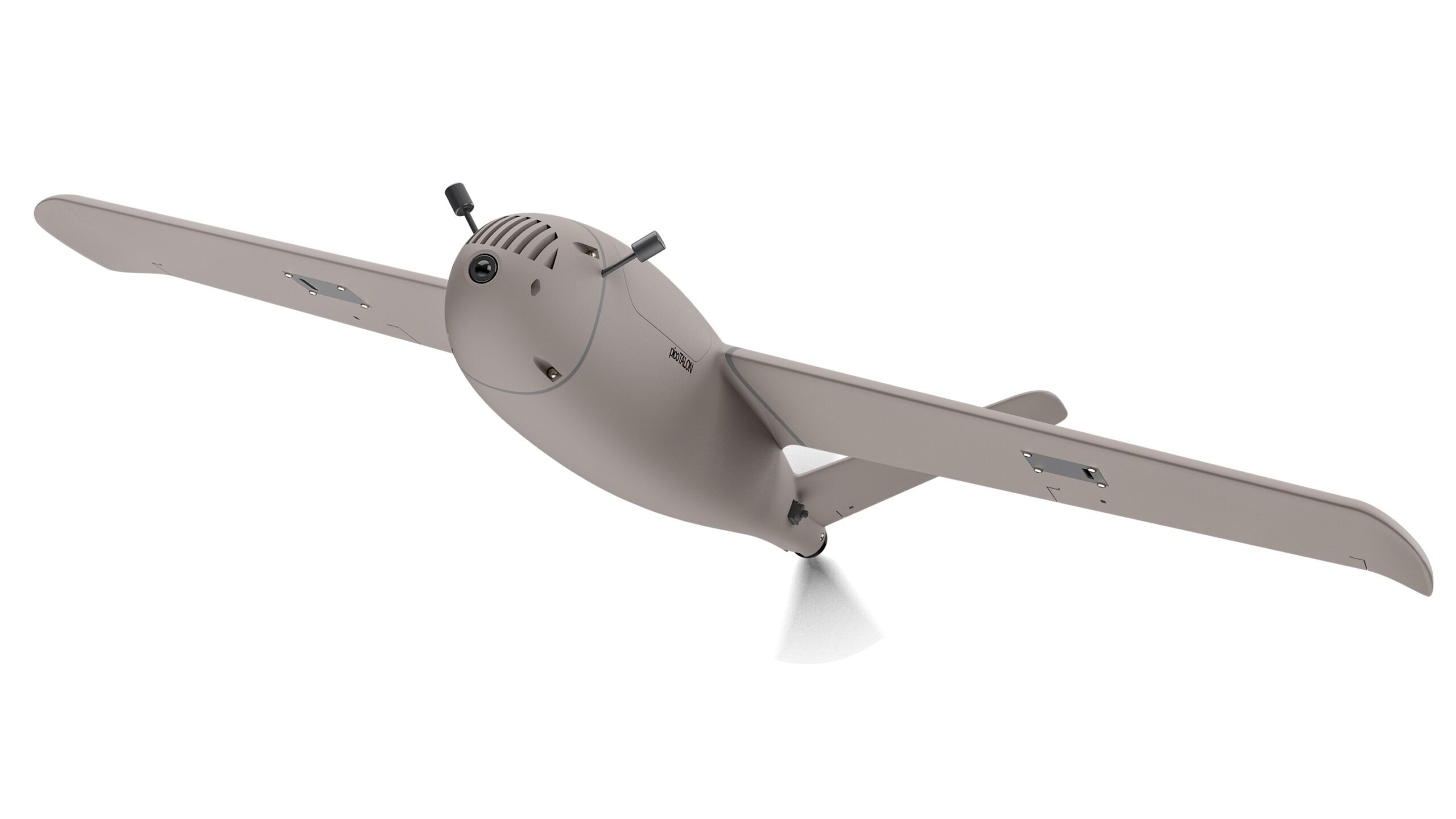

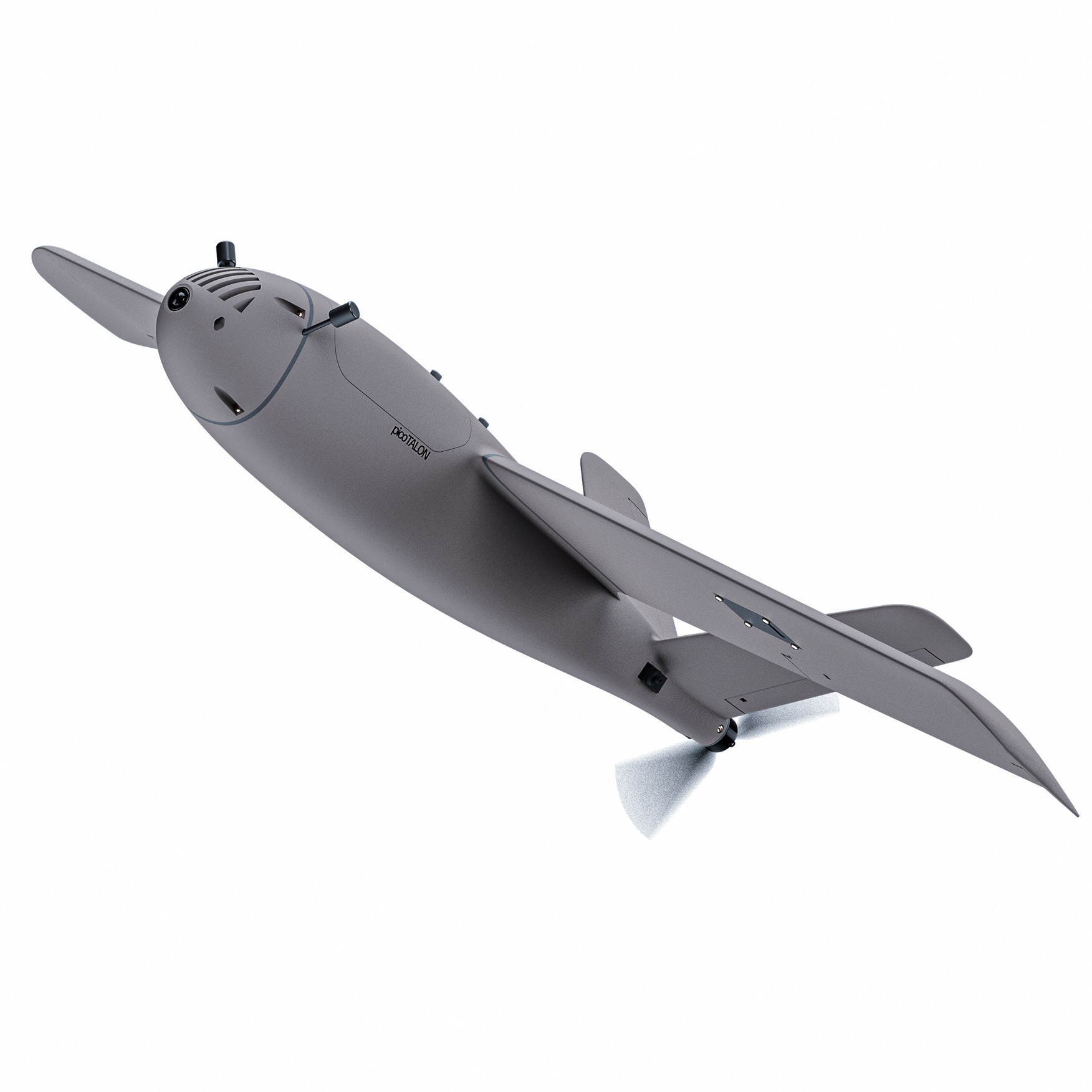

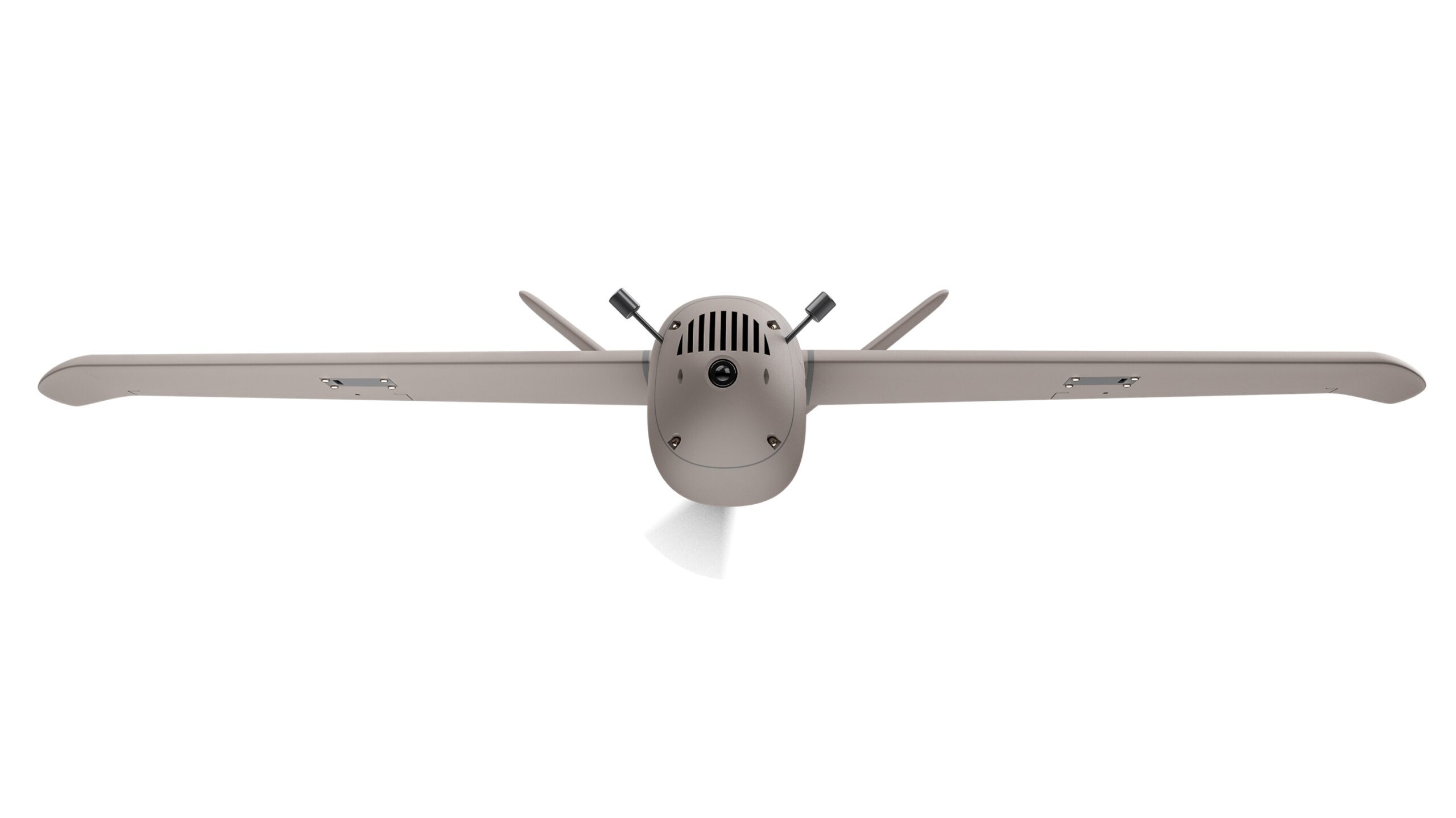

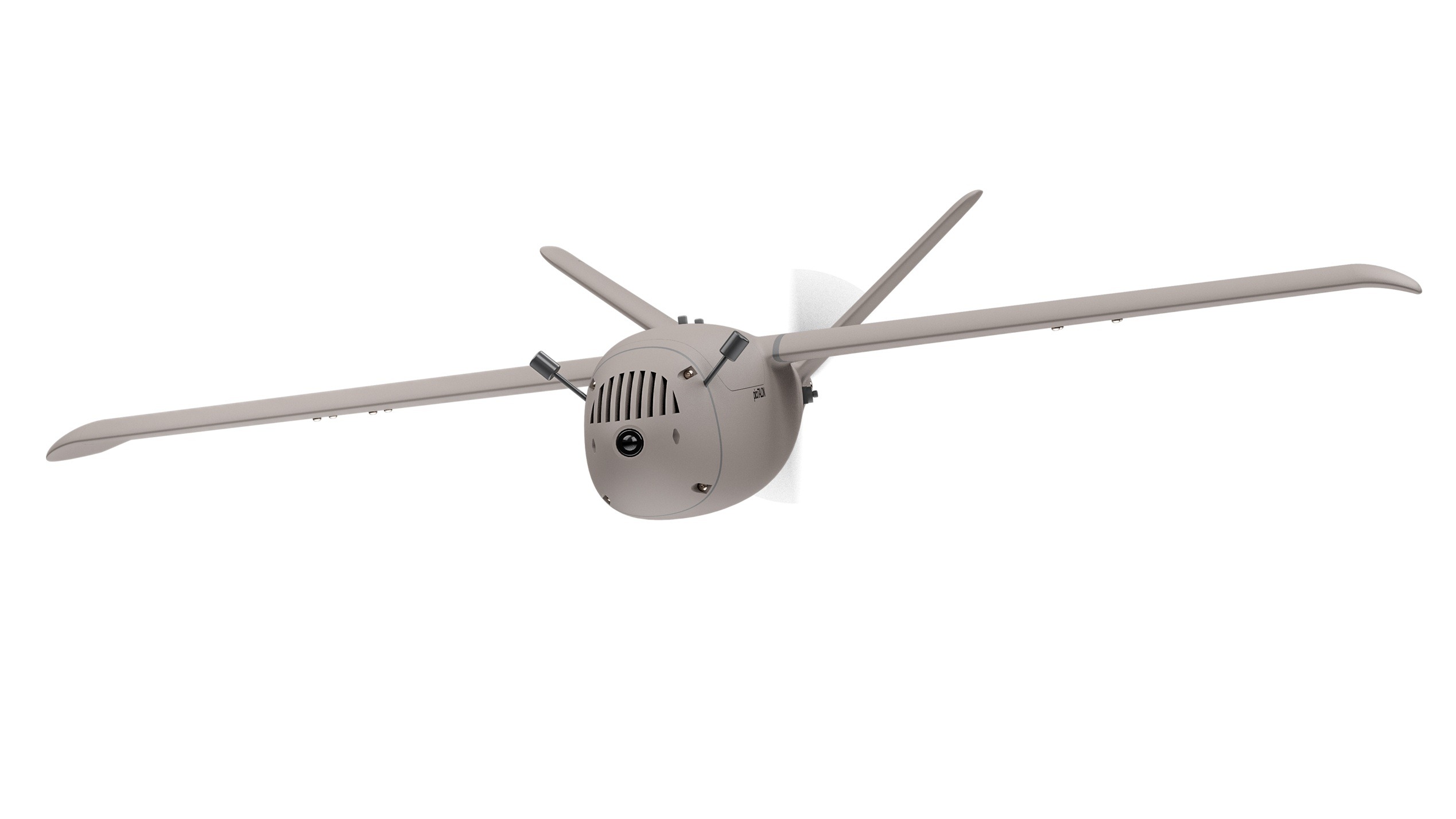

Introducing the pico Talon: compact 900mm wingspan 3D printed FPV plane in the popular push-propeller configuration. Plane is suitable for long distance flights, smooth cruising, and also for flying in small spaces even without use of FPV equipment. Aircraft can be successfully carried fully assembled, but you can also detach the wings. Wings mount is simple and solid. Nose of the aircraft is modular and completely removable. It has been fully adapted for the Walksnail system, but version for standard FPV cameras is also available. Nose file as well as several other parts is available in STEP format to facilitate possible editing and customization. Despite its small size, the fuselage is spacious and will even fit a Li-on 4S2P battery which will allow up to 2 hours of flight with recommended equipment. If you prefer less wing loading then you can use smaller battery and still enjoy a long flight time. Recommended motor is a T-Motor F90 1300KV and 7 inch propeller. However, 3 types of motor mounting have been prepared, so you will be able to mount most motors of similar size or even larger.

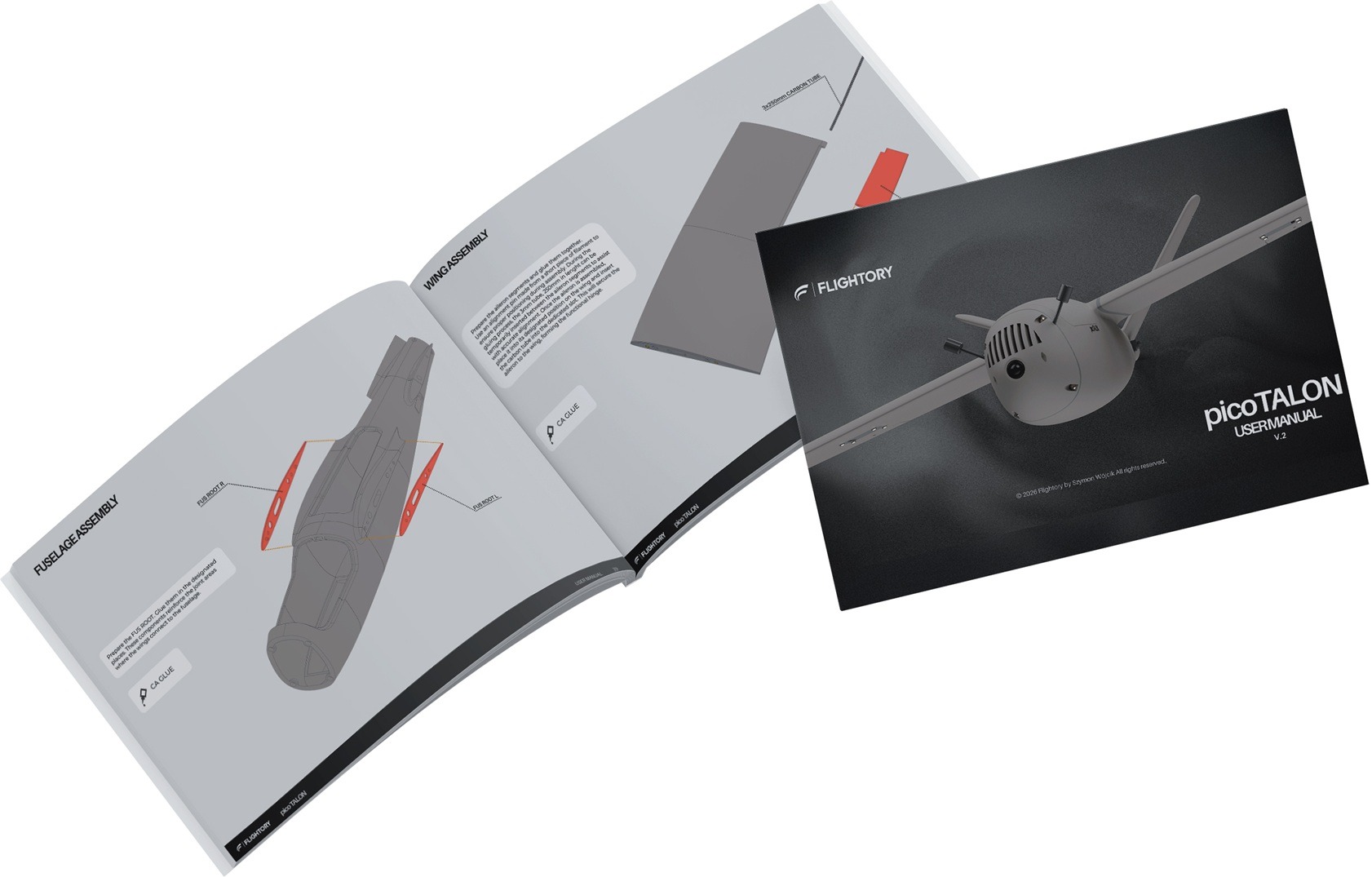

Check assembly manual, full list of needed accessories and more tips here:

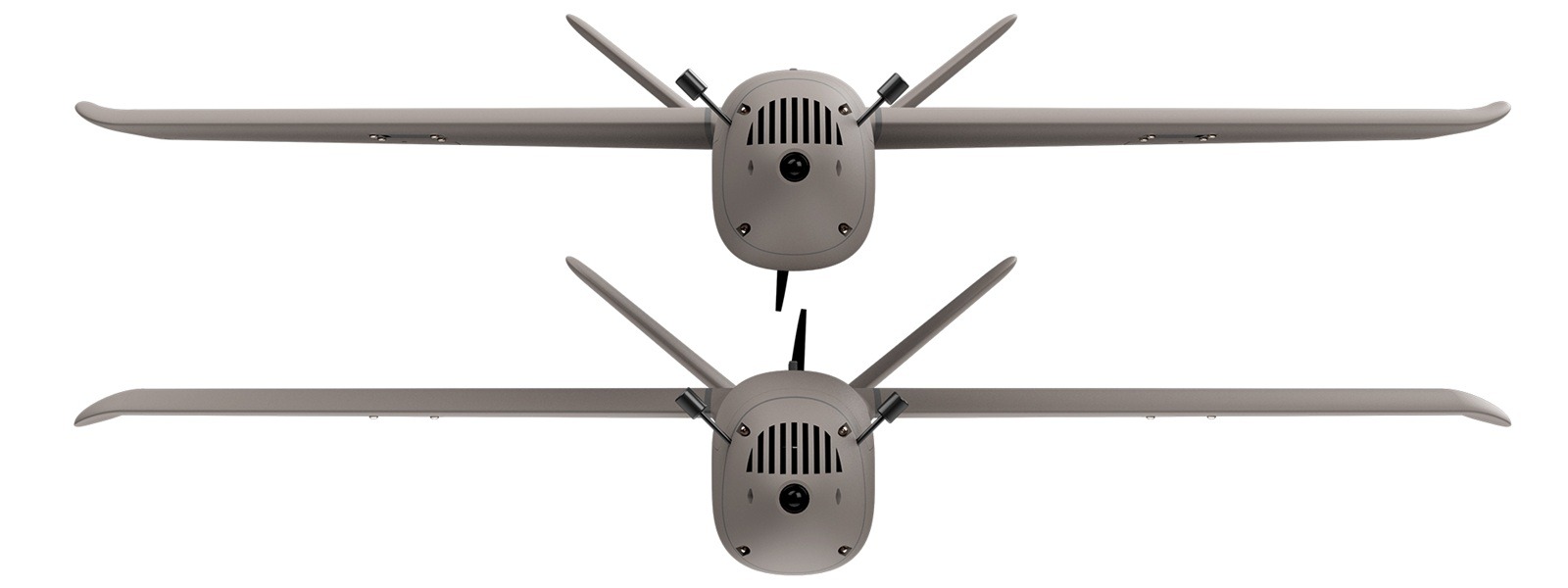

MODULAR NOSE - CHOOSE YOUR TYPE
Walksnail, or Standard FPV cameras solution. Available in STEP format.
You can modify to suit your needs.
STEP FILES
Some other parts are also available in STEP format to make editing easier if you need to customize something for your own equipment. Check the full list of files in the user manual.

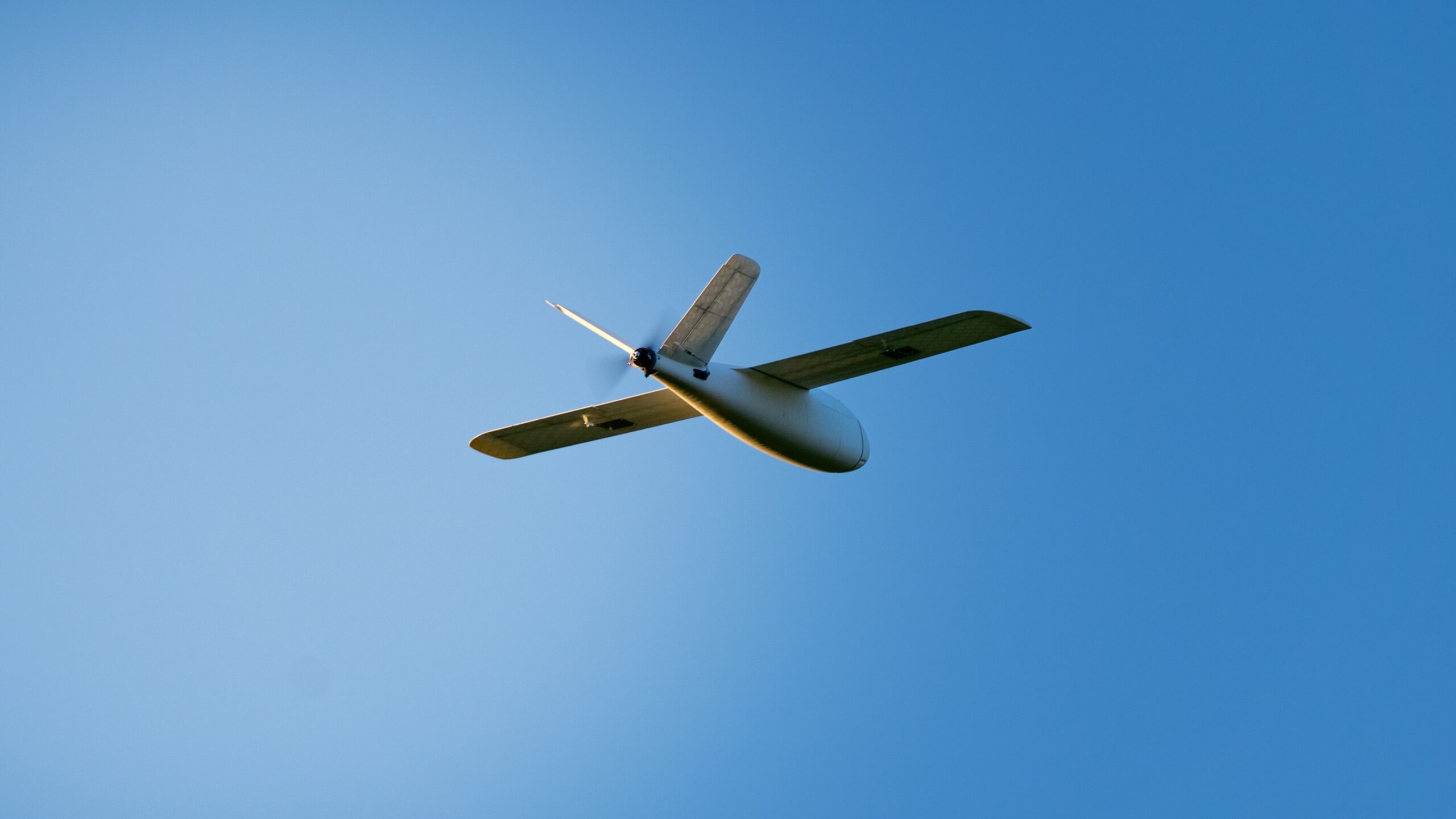

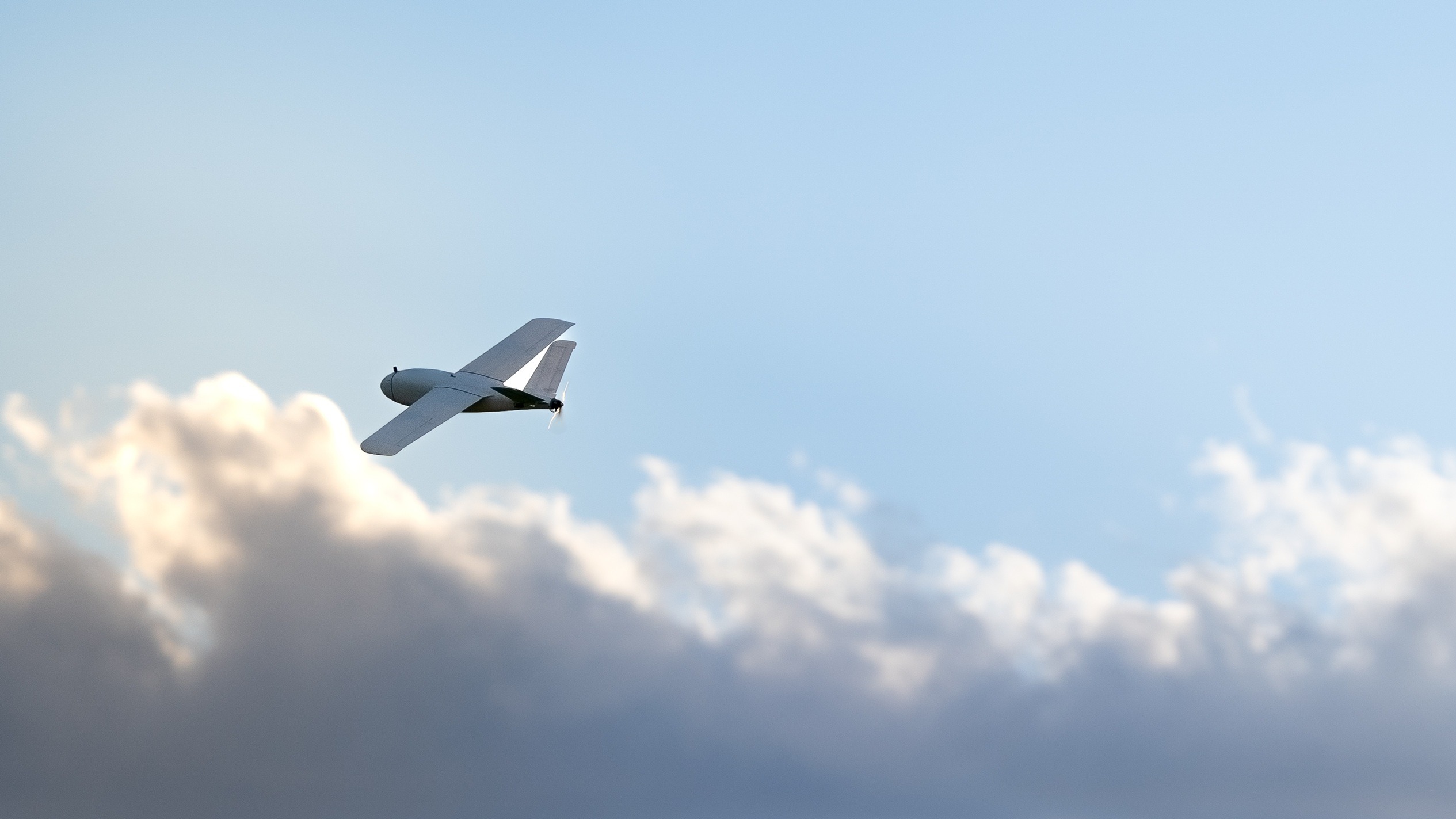

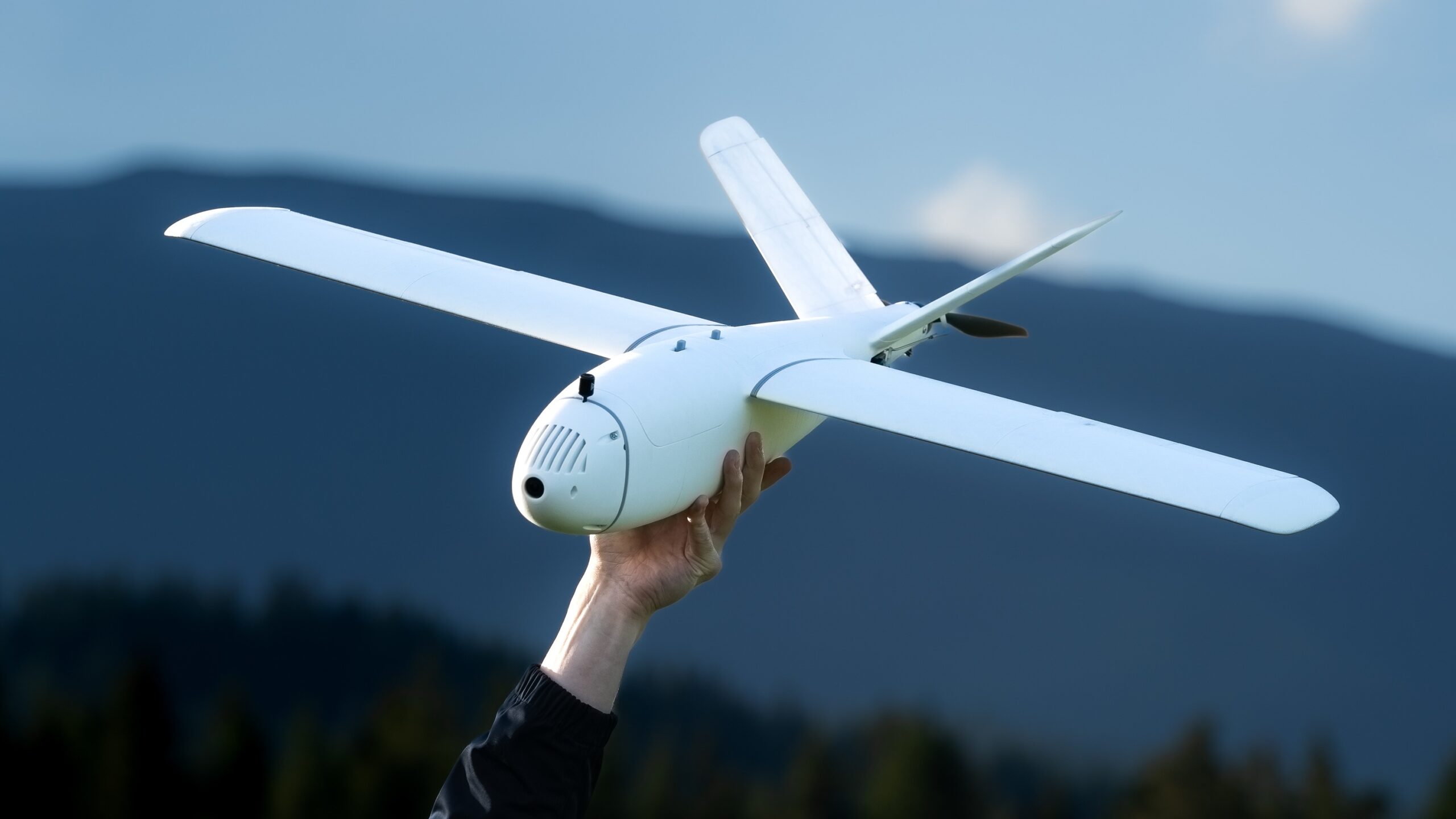

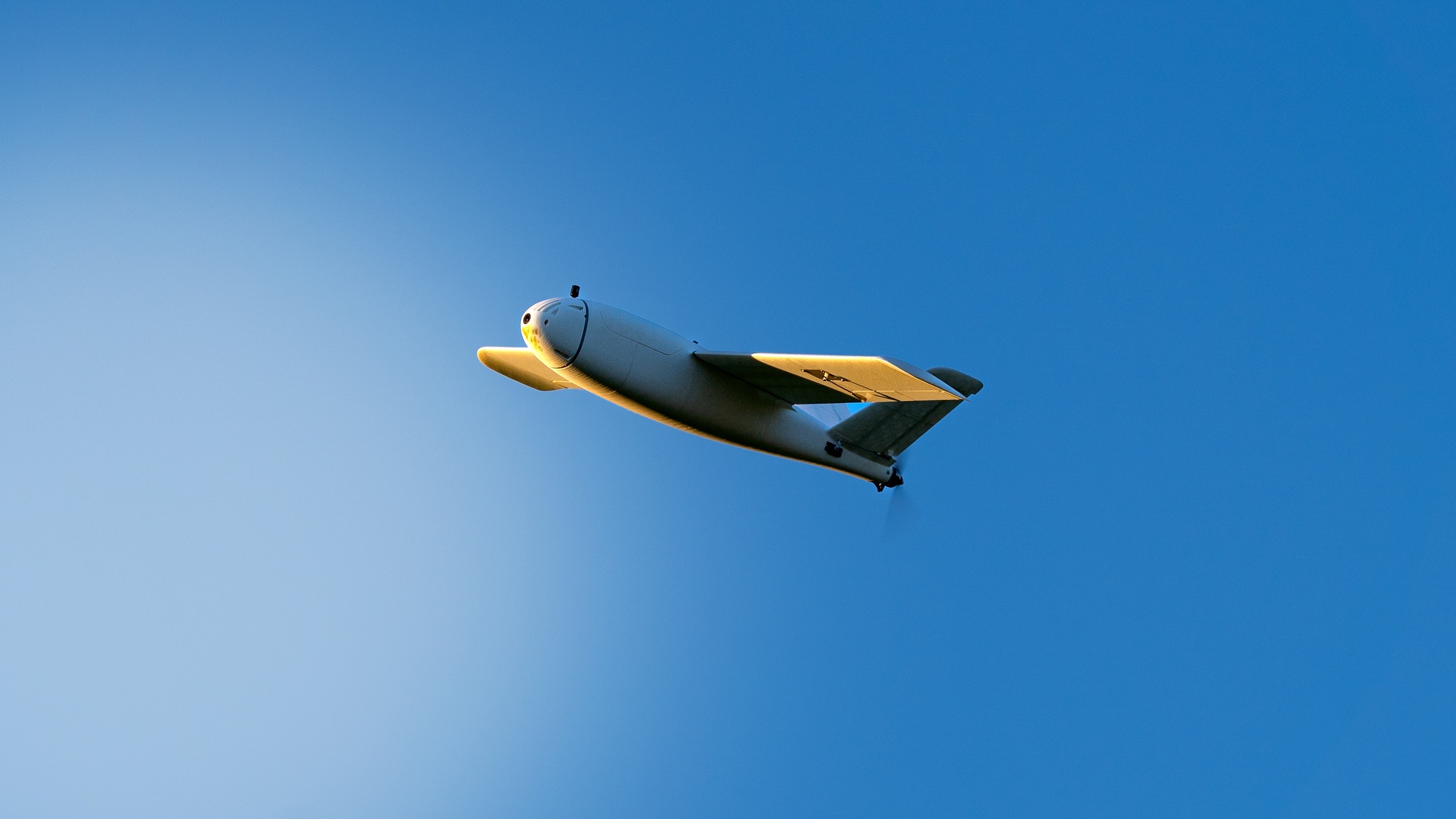

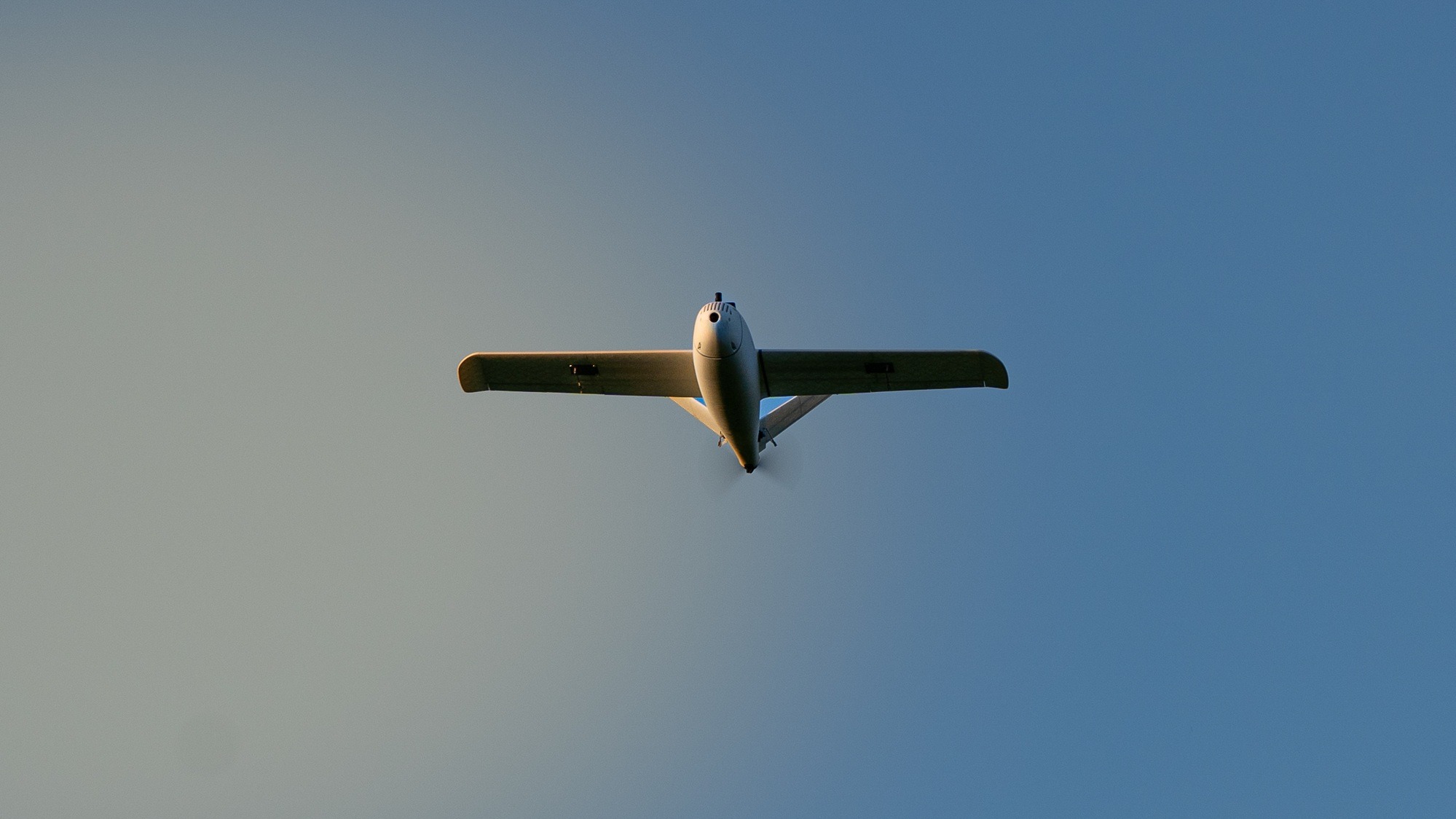

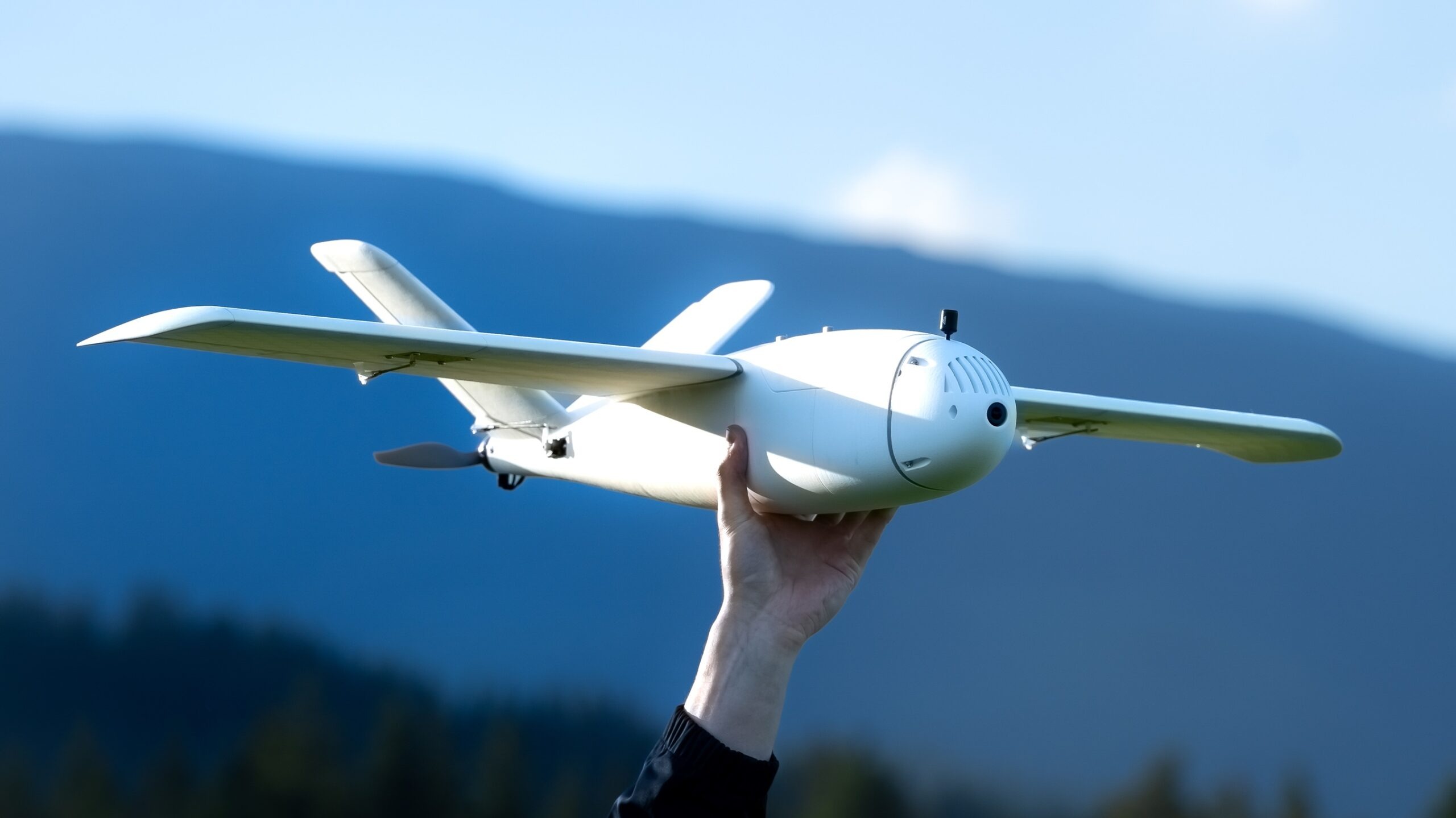

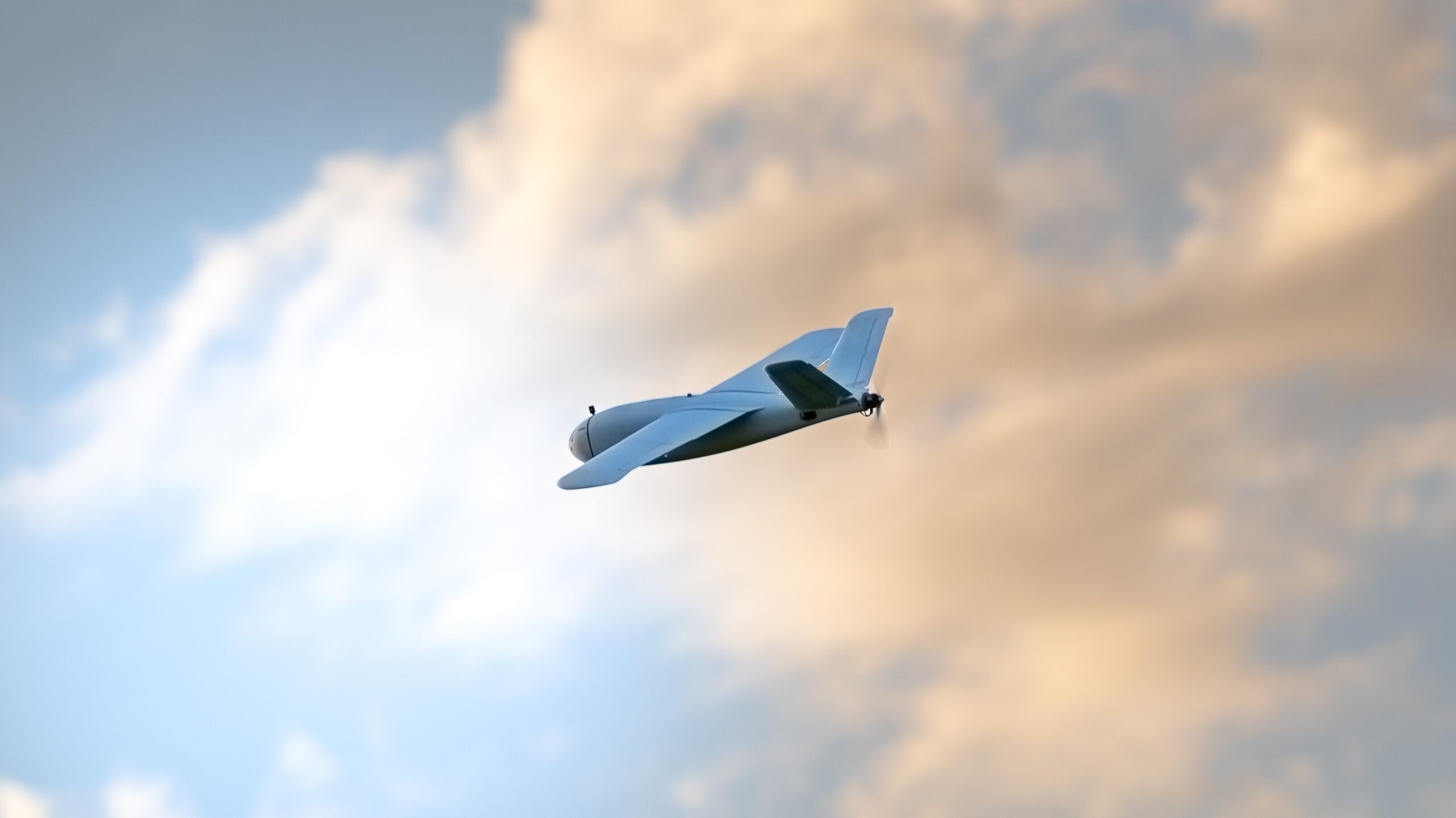

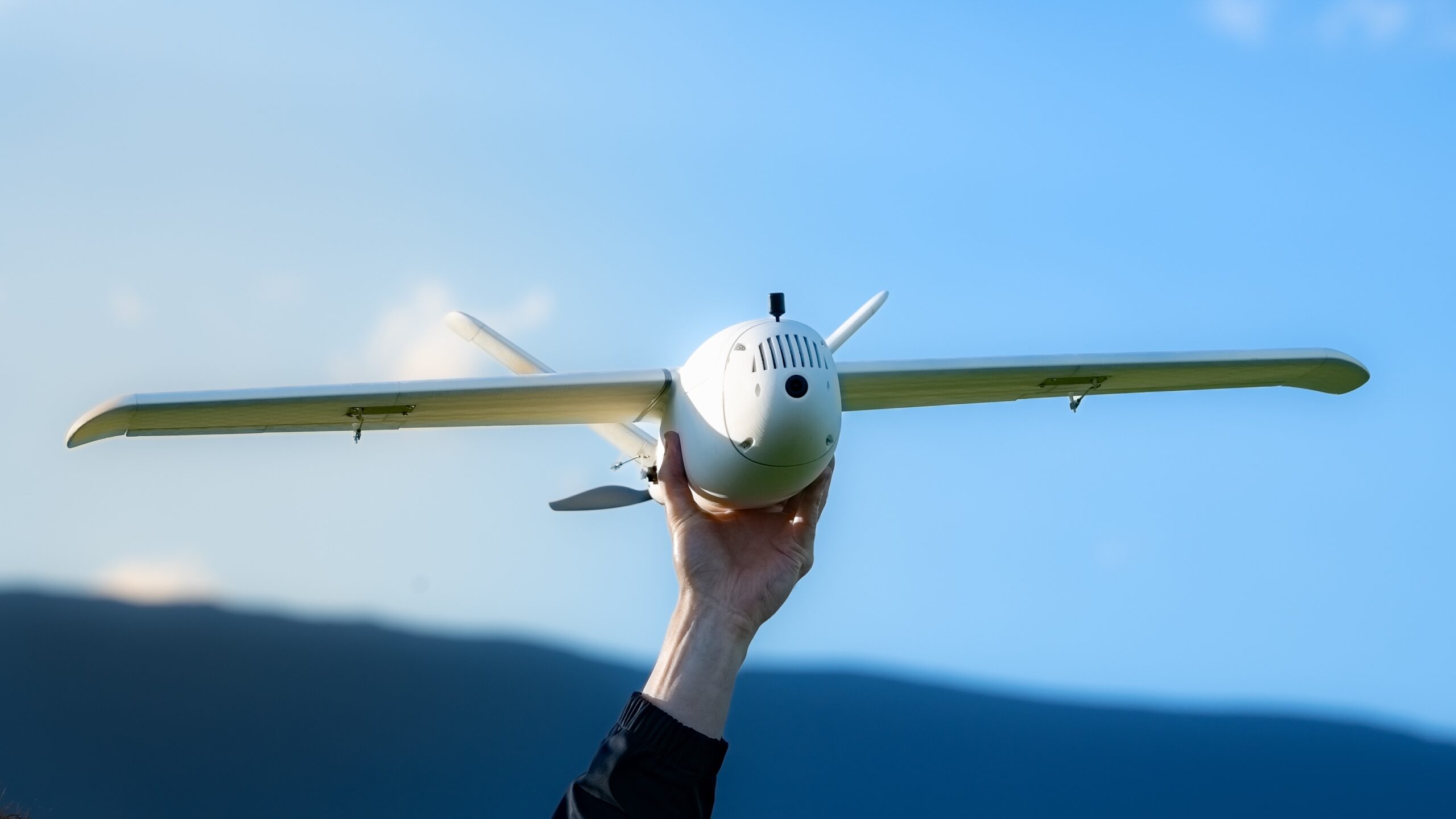

GALLERY

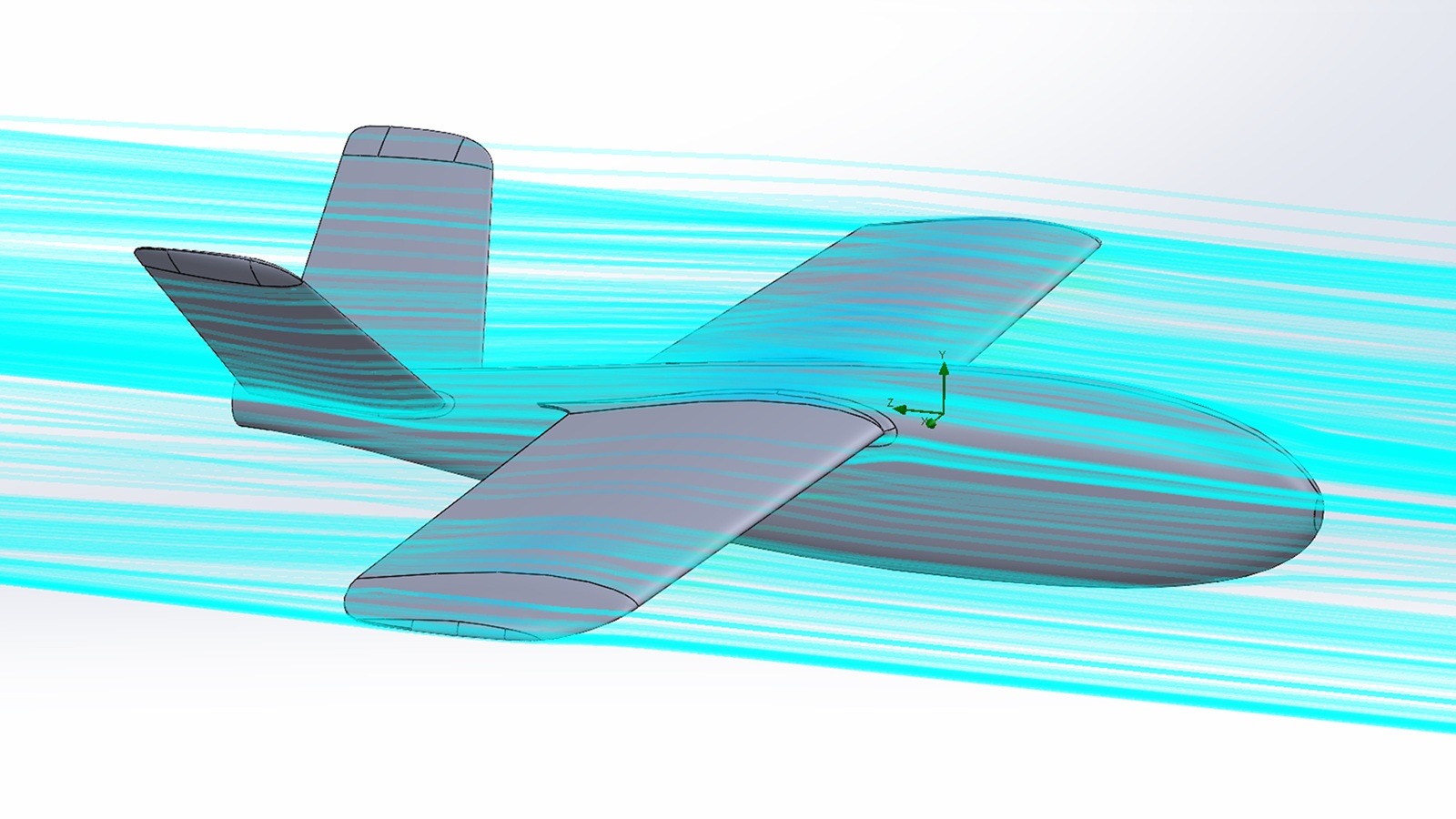

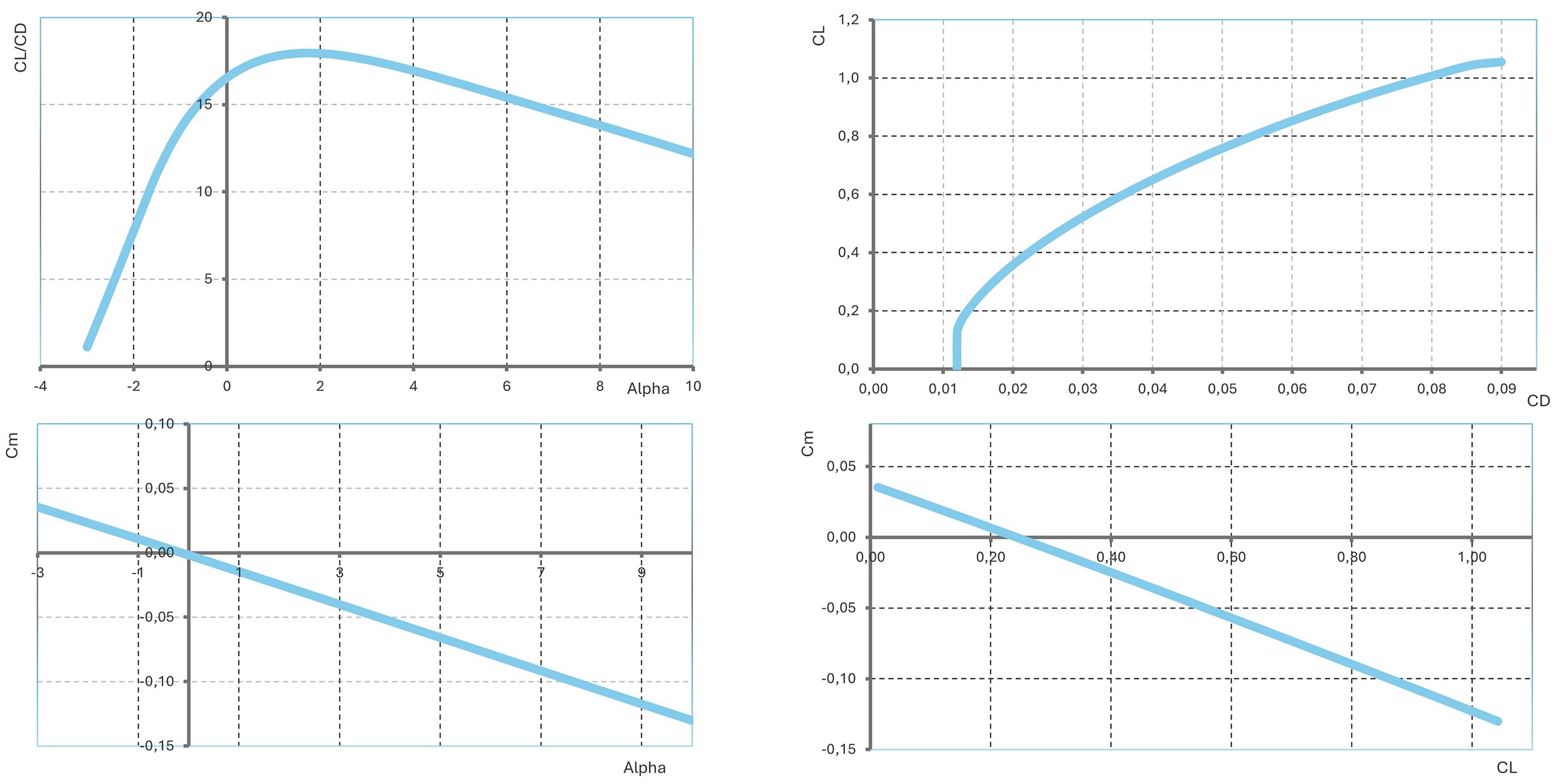

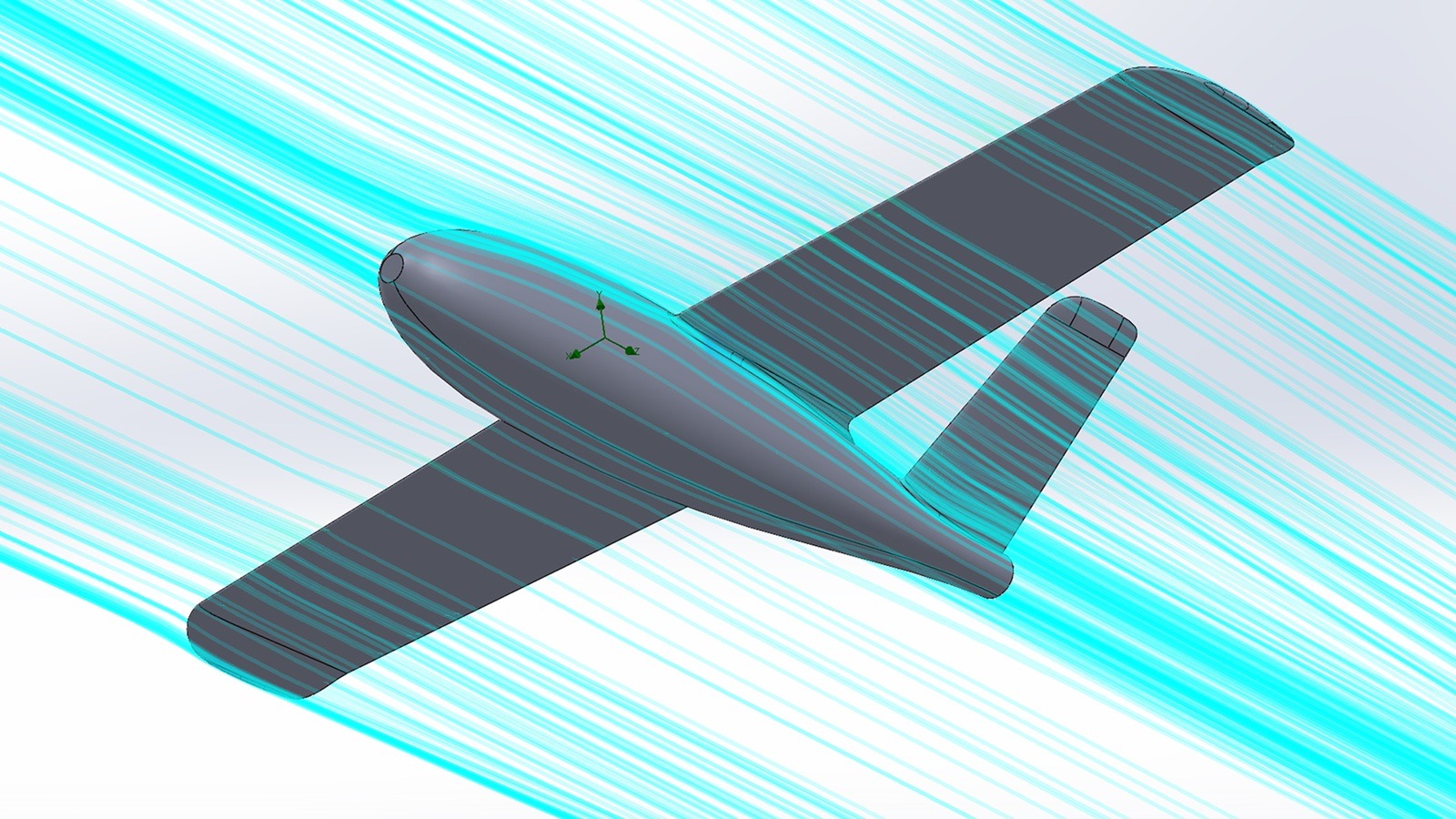

CFD RESULTS
Geometry is designed to provide the best possible characteristics. During preliminary testing, a number of airfoils were checked and Eppler E205 was finally selected. The aircraft's longitudinal stability is ensured by a fair margin. With the center of gravity properly adjusted, for horizontal flight at zero angle of attack, there is no pitch moment, which was also confirmed in test flights. Optimal angles of attack are in the range of 0 to 2 degrees, the cruising speeds providing the greatest flight time are in the range of 55 to 75 km/h.
Required accessories:
| ITEM | QUANTITY |
| 8x500mm Carbon Tube (MAIN SPAR) link / link | 1 |
| 6x490mm Carbon Tube (SECOND SPAR) link / link | 2 |
| 4x220mm Carbon Tube (SPAR) link / link | 2 |
| 4x130mm Carbon Tube (VTAIL SPAR) link / link | 2 |
| Thin CA Glue link | 20g tube |
| CA Activator link | 1 (optional but useful) |
| M3 Threaded Insert (Outer Ø5mm, height 5mm) link | 16 |
| M3 screw | 18 |
| Plastic M6 screw link | 4 |
| M6 nut | 8 |
| LW-PLA link / link | 1 roll |
| PLA / PETG link | Small amount |
| Polyester hinge 25x20mm e.g. link | 12 |
| Pen spring | 2 |
| Velcro strap link | 2 |
| Servo extension cable link | 2 (optional) |
| Control Horn link | 4 |
| Pushrod link / link | 4 |
Reccomended electronics:
| Motor | T-Motor F90 1300KV link |
| Propeller | 7x4 / 7x5 / 7x6 link |
| Flight Controller | Speedybee F405 Wing or any other Mavlink FC link / link |
| GPS | Matek M10Q or similar GPS with compass link |
| Servos | 2x Corona 929MG Metal Gear + 2x Corona CS239MG Slim Wing link / link / link |
| ESC | 2x BlHeliS 30-40A link |
| Battery | Li-on 21700 4S1P 5000mAh or similar LiPo link |
| Receiver | Matek R24-D ELRS or similar link |
| FPV Camera + VTX | Walksnail Avatar or any digital or analog link / link |
| FPV Goggles | Walksnail Goggles X or any other matching the chosen VTX link |
Print Settings:
Check the specified print settings on the Print Settings Page
